powder filling machine 25kg powder packing machine for bag

FOB Reference Price:Get Latest Price
US $10,000-30,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Filling Machine
Condition:
New
Application:
Beverage, Chemical, Food, Medical
Packaging Type:
Bags, Bottles, Cans, Pouch, Stand-up Pouch
Packaging Material:
Paper, Plastic
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
220V
Power:
4KW
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
Jinchi Machinery
Model Number:
JS
Dimension(L*W*H):
4300*1300*2500mm
Weight:
400kg
Certification:
CE
After-sales Service Provided:
Engineers available to service machinery overseas
Name:
powder filling machine 25kg powder packing machine for bag
Packing speed:
3bags/min
Material:
Stainless Steel 304
After-sales Service:
Full life
Manual:
English version
Guarantee:
1 year
Training:
Provide by technician in commissioning service
Supply Ability
Supply Ability:
30 Set/Sets per Month
Packaging & Delivery
Packaging Details
Fumigation wooden cases, which are well sealed and strong enough for long term trip, and suitable for multi-times loading & unloading by forklift.
Port
Shanghai
Lead Time :
20-45 days after payment

powder filling machine 25kg powder packing machine for bag

 Introduction

powder filling machine 25kg powder packing machine for bag is designed according to the national standard GMP, can finish a sequence of work: measuring, bag, filling, sealing, sewing, deliver and other processes. And widely used for food, medicine, building materials, plastic, chemical and other industries packaging powder materials. Such as milk powder, rice noodles, cereals, coffee, sugar, coffee, glutamate, solid beverage, glucose, solid, pharmaceutical, pesticide, granular additive. The main parts of machine is made by 304 stainless steel. With the famous brand of the machine body, motor, cylinder, electrical accessories, pneumatic components, pneumatic sealing machine, sewing machine. And the customer could choose the brand himself.

Samples



Features

1. The machine is made by stainless steel, which suit for GMP, Food sanitation certification, and Anti-corrosion chemical products packing. (Machine material can customized, such as 316L)

2. Use combined type or open type transparent material box, easily washable no need to use tools.

3. Touch screen made in Taiwan, PLC control, stable work, anti-interference high precision weighing operation, easy to operate

4. Servo motor driving the screw to filling, with the advantage of high-precision, accuracy orientation, high-speed, great-torque, long-life, stable performance.

5. Stirrer’s driven by the Taiwanese reducer; Low noise, long life, maintenance-free life time.

6. A variety of products formula with different working parameters can be stored, up to 10 kinds of formula can store in the machine.

7. The screw part fit together by clamp, easy to change, meet the requirement of packing different density material; include the micro powder to particles.

8. Chain conveyor to deliver the packing bottle/can. Distribution and location by turntable, automatic weighing and remove the defective products, Product qualified rate is high.

Technical Parameters

1.Designed according to the national standard GMP, up to hygiene standard of foodstuff.

2.The parts which contact with the filling are made of 304 stainless steel, suit for Anti-corrosion chemical products packing.

3.Adopts PLC-touch screen control system, with error correction, deviation alarm and other functions

4.Adopt the new type weighing system in packing, with high speed and high precision measurement instrument, strong function

5.With the Roller and PVC conveying belt (the skeleton is made of stainless steel) to deliver the products. Double screw feeder .The roller can be taken down to clean, easy to clean, cleaning with no dead angle.

6.With calibration procedure: equipped with weights and calibration hooks, calibration at any time, especially can calibrate the weight for the machine long time no use.

Main Equipment

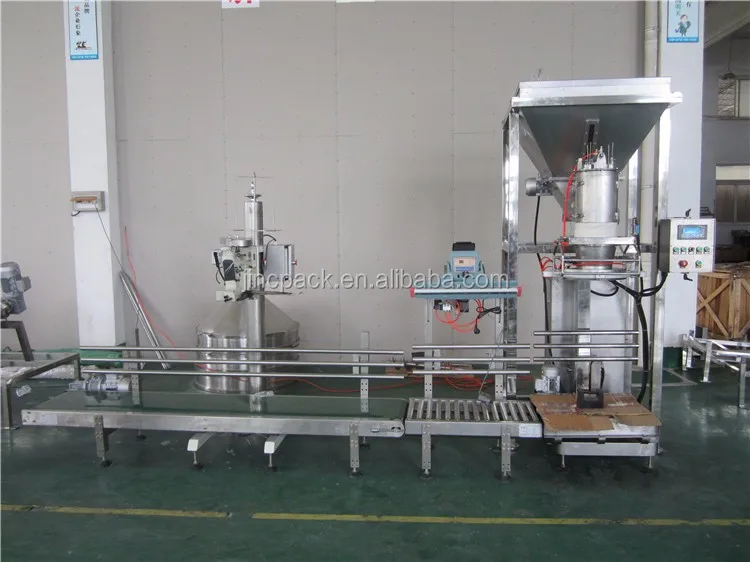

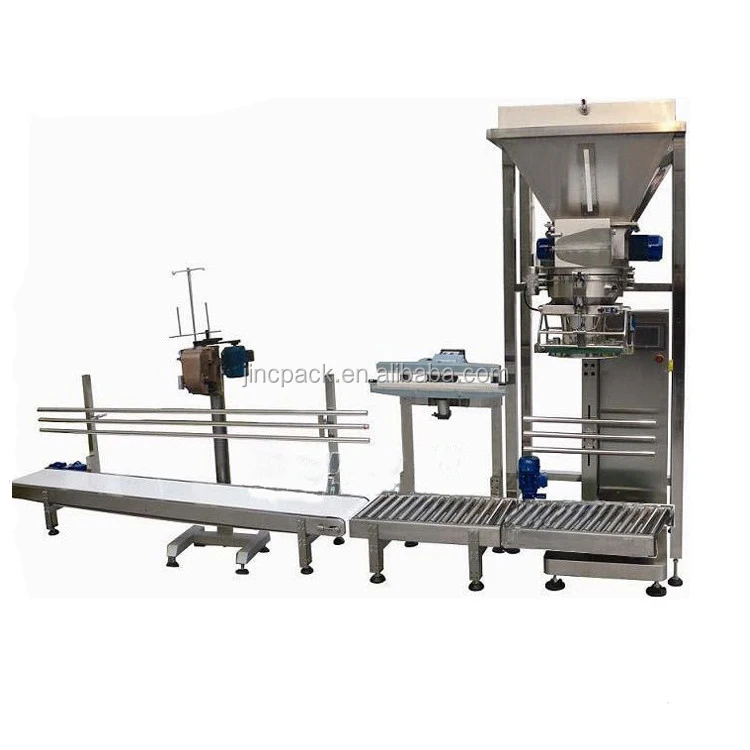

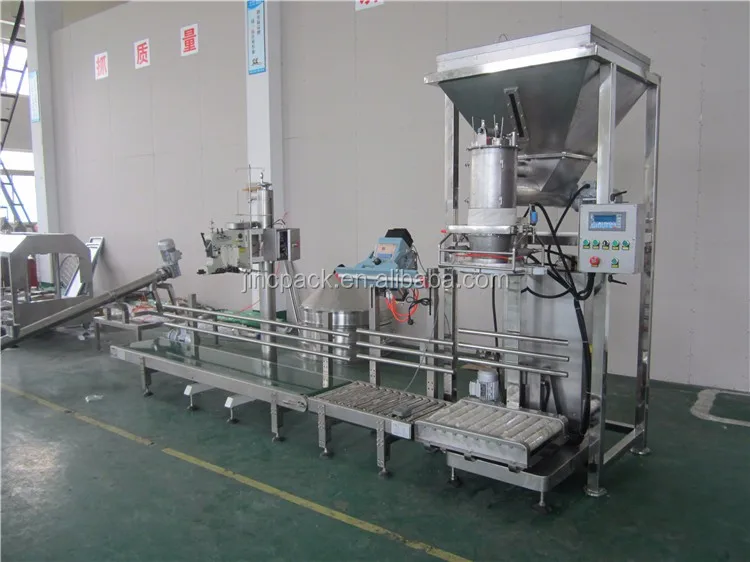

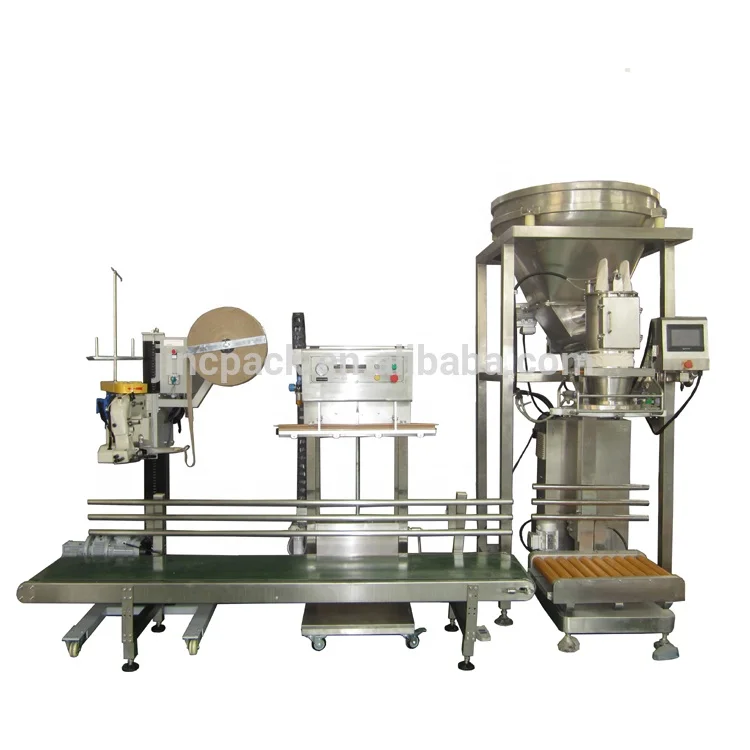

IMG_3026-750IMG_3031--750Heavy bag packaing machine-29





Commissioning & After-sales Service

We make accurate factory layout design according to customer’s factory size; if the customer needed, we could make workshop design with electric power, water supply, gas power, material storage, final storages, workers’ restroom, etc.

If customer need, we will send engineer for the commissioning service. 1-2 of our engineer will

go to your factory to install and adjust the processing line to realize normal production at shortest time.
Our engineers have responsibility to train and teach the workers how to operate, clean, maintain the repair all the machine, until the worker could well operate the production line.

It normally costs 10 days for the commissioning service, and we supply 1 year guarantee from the date of completion of commissioning service.
The engineer’s round-trip flight tickets, accommodation and daily salary USD 100 are on client’s account.

Contact information







Company Information

factory--Jinchi

IMG_20161206_095559



FAQ

Q: Can your machine be customized ?

A: Yes, we are a professional manufacturer specilized in packaging machine. For more than 10 years and we have a strong design&technical team. We can design and manufacture as per your requirements.



Q: How to get an accurate quotation ?

A: Please provide us the detail of the workpiece such as drawing and dimensions.



Q: Payment terms, MOQ, warranty, Trade Terms

A: Payment terms: 30% down payment against order by T/T, the balance of 70% to be paid on delivery.

Minimum order quantity: 1 set, FOB Shanghai

Delivery time: about 20-30 working days after receipt of formal order and 30% deposit.

Warranty: 12 months following delivery. We offer online service 24 hours all day long, Skype,

Email etc. You can contact us any time, if urgently, please call us.



Q: what’s the package ?

A: All goods are packed in wooden box.



Q: Do you offer Installation&debugging?

A: Our engineers are available to service machinery overseas to help customers to solve machine problems.



Q: what’s policy for guarantee and broken parts ?

A: As for machine products, our company provides 12 months for all mechanical parts with the exception of electrical and electronic parts and those subjects to normal wear and tear. The guarantee is intended limited to the replacement of the broken part after checking the construction fault. The inspection of the causes of the trouble or the breakdown of the parts is exclusively up to the manufacturing company. All in all, our company can offer you assured products.
