High accuracy coffee ice cream Powder salt packing machine

FOB Reference Price:Get Latest Price
  • 1 - 9 Sets
    US $30000.00
  • >=10 Sets
    US $5000.00
Report Suspicious Activity
Overview
Quick Details
Type:
Other
Condition:
New
Application:
Food, Machinery & Hardware
Packaging Type:
Bags, Film, Stand-up Pouch
Packaging Material:
Paper, Plastic
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
220V
Power:
5.5kw
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
JINCHI
Model Number:
JCF-420
Weight:
1000kg
Dimension(L*W*H):
2300x1070x2600mm
Certification:
CE ISO
After-sales Service Provided:
Engineers available to service machinery overseas
Name:
High accuracy coffee ice cream Powder salt packing machine
After-sales Service::
Full life
Features::
Continuous & Automatic
Material::
Stainless Steel 304
Layout::
AutoCAD format according to client's workshop
Spare Parts::
1 set
Guarantee::
1 year
Training::
Provide by technician in commissioning service
Manual::
English version
Supply Ability
Supply Ability:
100 Set/Sets per Year
Packaging & Delivery
Packaging Details
Fumigation wooden cases, which are well sealed and strong enough for long term trip, and suitable for multi-times loading & unloading by forklift.
Port
shanghai
Lead Time :
25

Contact information

Email : jincpack06(@)jincpack.com

Whatsapp : +0086 15079278912

Skype : + 0086 15079278912

Wechat : 13410506971





Samples

Screw feeder 1kg bag packing machine vertical packaging machine bagging machine



Features

1.Fully automatic and continuous, and easy to connect with other processing machinery;

 2.Combined many functions into one: Conveying materials - Weighing materials - Making bags - Filling materials - Filling air or nitrogen (needs additional Air compressor or Nitrogen Generator) - Sealing bag - Printing date & code - Hitting holes - Conveying final bags;

 3.PLC and touch screen control;

 4.High precision with weight error of ±0.1-0.5%;

 5.High efficiency without crashing the materials;

 6.Many kinds of compound film can be used, like BOPP/CPP, OPP/VMCPP. BOPP/PE, PET/VMPET/PE, PET/AL/PE, NY/PE, PET/PET, etc



Technical Parameters

Model

JC-420

JC-520

JC-620

JC-720

Packing accuracy

±0.2-0.5%

Speed

10-60pcs/min

10-60pcs/min

10-60pcs/min

10-50pcs/min

Bag Length

50-300mm

80-350mm

100-400mm

100-450mm

Bag Width

60-200mm

80-250mm

100-300mm

100-350mm

Power

5.5KW

7.5KW

8.5KW

8.5KW

Dimension

2300x1070x2600mm

2350x1300x2600mm

2600x1450x2800mm

2700x1500x2800mm

Weight

900kg

1300kg

1700kg

1700kg





Main Equipment

 IMG_3559 .jpg





Screw feeder 1kg bag packing machine vertical packaging machine bagging machineScrew feeder 1kg bag packing machine vertical packaging machine bagging machine





Feature

Screw feeder 1kg bag packing machine vertical packaging machine bagging machineScrew feeder 1kg bag packing machine vertical packaging machine bagging machineScrew feeder 1kg bag packing machine vertical packaging machine bagging machineScrew feeder 1kg bag packing machine vertical packaging machine bagging machineScrew feeder 1kg bag packing machine vertical packaging machine bagging machine





Screw feeder 1kg bag packing machine vertical packaging machine bagging machine

A Full Packing Machine Assemble

1.Screw Feeder

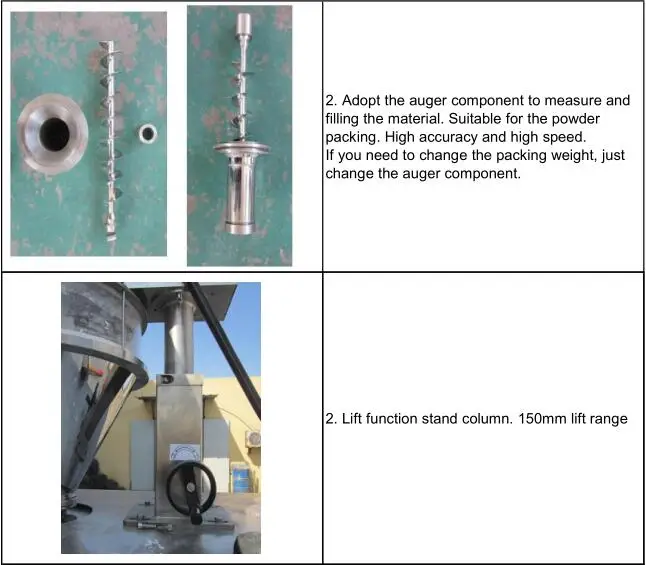

2.Auger Filler

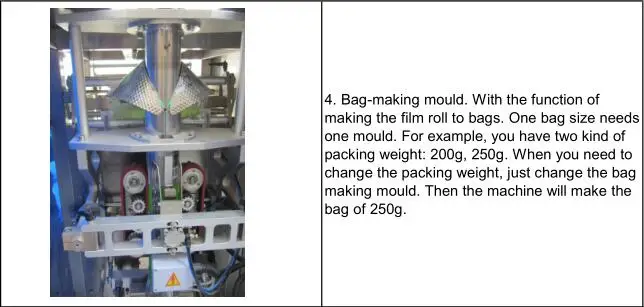

3.Veticable Pacing machine

4.Output conveyer

5.Rotaty table



Necessary :  Auger Filler and Vertical Packing machine

Option device : Screw Feeder , Output conveyer , Rotay table









Bag Type



Screw feeder 1kg bag packing machine vertical packaging machine bagging machine

Packing & Shipping

Screw feeder 1kg bag packing machine vertical packaging machine bagging machine

  Screw feeder 1kg bag packing machine vertical packaging machine bagging machineScrew feeder 1kg bag packing machine vertical packaging machine bagging machine



FAQ

Q: Can your machine be customized ?

A: Yes, we are a professional manufacturer specilized in packaging machine for more than 10 years and we have a strong design&technical team. We can design and manufacture as per your requirements.



Q: How to get an accurate quotation ?

A: Please provide us the detail of the workpiece such as drawing and dimensions.



Q: what’s the package ?

A: All goods are packed in wooden box.



Q: Do you offer Installation&debugging?

A: Our engineers are available to service machinery overseas to help customers to solve machine problems.
