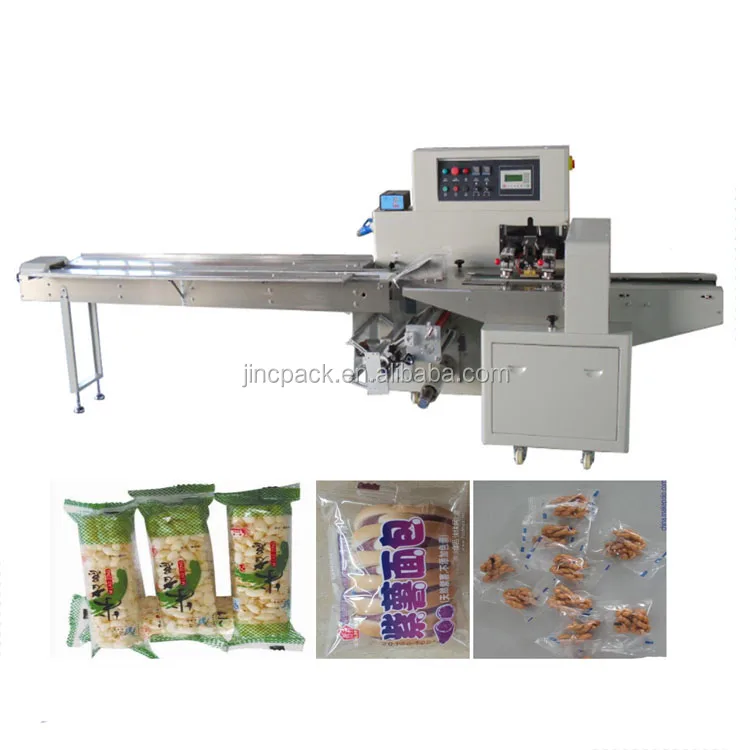

Good price Packaging machine candy pillow filling machine

FOB Reference Price:Get Latest Price
US $5,400-8,800 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Filling Machine
Condition:
New
Application:
Food, Machinery & Hardware, Medical
Packaging Type:
Bags, Capsule, Pouch
Packaging Material:
Paper, Plastic
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
Customized
Power:
4.6KW
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
Jinchi Machinery
Model Number:
JSZ-250(P)
Dimension(L*W*H):
3770 x 640 x 1360mm
Weight:
500kg
Certification:
CE ISO
After-sales Service Provided:
Engineers available to service machinery overseas
Name:
Good price Packaging machine candy pillow filling machine
Manual:
English version
Packing speed:
40-230bag/min
Guarantee:
1 year
After-sales Service:
Full life
Training:
Provide by technician in commissioning service
Material:
Stainless Steel 304
Packaging & Delivery
Packaging Details
Fumigation wooden cases, which are well sealed and strong enough for long term trip, and suitable for multi-times loading & unloading by forklift.
Port
Shanghai
Lead Time :
20-45 days after payment

Manufactory packing machine automatic popsicle packaging machine

Contact Information

Email : jincpack06 at jincpack.com

Wechat : 13410506971

WhatsApp : +0086 15079278912

Skype : 15079278912

QQ : 415005440





Introduction

Manufactory packing machine automatic popsicle packaging machine is used to pack regular objects, like  chocolate, instant noodle, biscuit, bread, egg roll, moon cake, medicine, hardware, industrial parts, paper box, plate, etc.

Samples





Certificate



Features

 1.Dual frequency conversion control, Bag length can be set and cut in one step , saving film.

2.Adapt man-machine interface to set parameters and input process data

3.With the function of fault self-diagnosis, clearly show the fault.

4.High sensor photoelectric color chart tracking, digital input sealing and cutting position,make the cutting position more correctly.

5.Temperature control by PID, suit for all kind of packing material.

6.Position stop function, no adhesive and no waste of film material.

7.Drive system simple structure, high reliability, and ease of maintenance.

8.Software control, facilitate the functional adjustment and technology upgrades





Technical Parameters



Model

JSZ-250(P)

JSZ-320(P)

JSZ-420(P)

JSZ-620(P)

Film width

Max. 250mm

Max. 350mm

Max. 450mm

Max. 600mm

Bag length

65-190mm or 120-280mm

120-450mm

Bag width

30-110mm

30-160mm

50-160mm

50-200mm

Production height

5-40mm

10-80mm

Film roll diameter

Max. 320mm

Film thickness

0.03-0.07mm

Packing speed

40-230bag/min

20-80bag/min

Power

3PAC 208-415V  50/60Hz  4.6kw

Weight

500kg

600kg

800kg

900kg

Dimension

3770 x 640 x 1360mm

4020 x 770 x 1450mm

4380 x 870 x 1500mm

4380 x 970 x 1500mm



Main Equipment



Packing & Shipping



Commissioning & After-sales Service

We make accurate factory layout design according to customer’s factory size; if the customer needed, we could make workshop design with electric power, water supply, gas power, material storage, final storages, workers’ restroom, etc.

If customer need, we will send engineer for the commissioning service. 1-2 of our engineer will

go to your factory to install and adjust the processing line to realize normal production at shortest time.
Our engineers have responsibility to train and teach the workers how to operate, clean, maintain the repair all the machine, until the worker could well operate the production line.

It normally costs 10 days for the commissioning service, and we supply 1 year guarantee from the date of completion of commissioning service.
The engineer’s round-trip flight tickets, accommodation and daily salary USD 100 are on client’s account.
