automatic powder packing machine for superfine powder

FOB Reference Price:Get Latest Price
  • 1 - 9 Sets
    US $30000.00
  • >=10 Sets
    US $15000.00
Report Suspicious Activity
Overview
Quick Details
Type:
Other
Condition:
New
Application:
Food, Machinery & Hardware
Packaging Type:
Bags, Film, Stand-up Pouch
Packaging Material:
Paper, Plastic
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
220V
Power:
5.5kw
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
JINCHI
Model Number:
JCF-620
Weight:
1000kg
Dimension(L*W*H):
2300x1070x2600mm
Certification:
CE ISO
After-sales Service Provided:
Engineers available to service machinery overseas
Features::
Continuous & Automatic
Name:
Fully Automatic Detergent/Milk/Flour /Coffee/Spice Powder Packing
Material::
Stainless Steel 304
Manual::
English version
After-sales Service::
Full life
Layout::
AutoCAD format according to client's workshop
Guarantee::
1 year
Spare Parts::
1 set
Training::
Provide by technician in commissioning service
Packaging & Delivery
Packaging Details
Fumigation wooden cases, which are well sealed and strong enough for long term trip, and suitable for multi-times loading & unloading by forklift.
Port
shanghai
Lead Time :
25

automatic powder packing machine for superfine powder



Introduction

Vertical automatic quantification packaging machine is mainly used for packing powder and flour products, such as nutritional powder, baby food, sesame paste, salt, sugar, flour, starch, flavors, milk powder, albumen powder, etc.

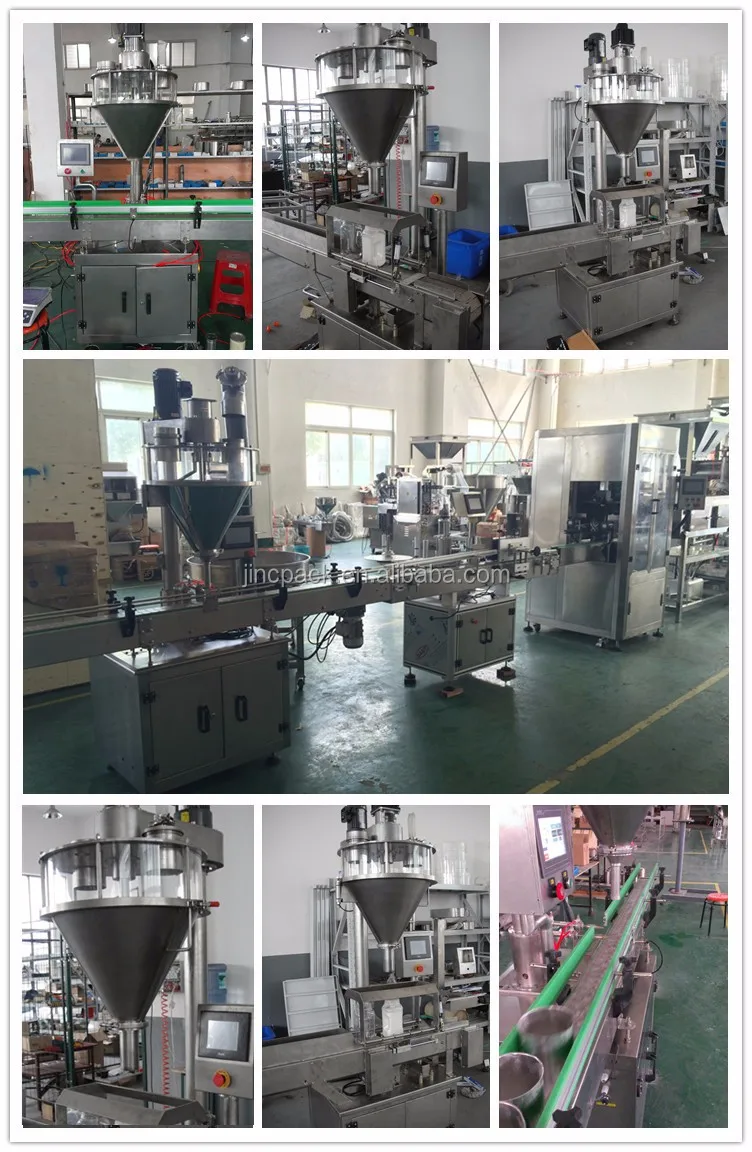

Samples





Certificate





Features

1.Fully automatic and continuous, and easy to connect with other processing machinery;



2.Combined many functions into one: Conveying materials - Weighing materials - Making bags - Filling materials - Filling air or nitrogen (needs additional Air compressor or Nitrogen Generator) - Sealing bag - Printing date & code - Hitting holes - Conveying final bags;



3.PLC and touch screen control;



4.High precision with weight error of ±0.1-0.5%;



5.High efficiency without crashing the materials;



6.Many kinds of compound film can be used, like BOPP/CPP, OPP/VMCPP. BOPP/PE, PET/VMPET/PE, PET/AL/PE, NY/PE, PET/PET, etc



Technical Parameters

Model

JCF-420

JCF-520

JCF-620

JCF-720

Packing accuracy

±0.2-0.5%

Speed

10-60pcs/min

10-60pcs/min

10-60pcs/min

10-50pcs/min

Bag Length

50-300mm

80-350mm

100-400mm

100-450mm

Bag Width

60-200mm

80-250mm

100-300mm

100-350mm

Power

5.5KW

7.5KW

8.5KW

8.5KW

Dimension

2300x1070x2600mm

2350x1300x2600mm

2600x1450x2800mm

2700x1500x2800mm

Weight

900kg

1300kg

1700kg

1700kg





Main Equipment









 Packing & Shipping





Commissioning & After-sales Service



We make accurate factory layout design according to customer’s factory size; if the customer

needed, we could make workshop design with electricity power, water supply, gas power, material

storage, final storages, worker’s restroom, etc.



After delivering machines to client’s factory, we start to apply for the Visa to client’s country

immediately; normally the vessel needs 20-60 days to the required port, so we have enough

time to get the Visa. While the machines arrives your factory, our engineers are ready to start

for the commissioning service.1-2 of our engineers will go to your factory to install and adjustthe processing line to realize normal production at shortest time.



Our engineers have responsibility to train and teach the workers how to operate, clean, maintain

and repair all the machines, until the workers could well operate the processing line.



It normally costs 10 days for the commissioning service, and we supply 1 year guarantee from

the date of completion of commissioning service.



The engineer’s round-trip flight tickets, accommodation and daily salary USD 60 are

on client’s account.







Company Information



Shanghai JinChi Machinery is a professional company for all kinds of packaging machine. Our main products include: Weighing granule packing machine, Powder packing machine, Liquid packing machine, Paste filling packing machine, Weighing filling packing machine, Automatic packing machine, Food packing machine, Vertical type packing machine, Horizontal type packing machine, Bag forming packing machine, Pillow roll packing machine etc. Also we can customize production line and nonstandard machinery according your requirement.
