Good quality premade pouch filling sealing machine for pickles

FOB Reference Price:Get Latest Price
US $20,000-40,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Filling Machine
Condition:
New
Application:
Chemical, Commodity, Food, Medical
Packaging Type:
Bags, Pouch, Stand-up Pouch
Packaging Material:
Paper, Plastic
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
Customized
Power:
3KW
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
Jinchi Machinery
Model Number:
JC-300
Dimension(L*W*H):
1555*1405*2265mm
Weight:
1000KG
Certification:
CE ISO
After-sales Service Provided:
Engineers available to service machinery overseas
Name:
Good quality premade pouch filling sealing machine for pickles
Packing speed:
40-60bags/min
Material:
Stainless Steel 304
Training:
Provide by technician in commissioning service
After-sales Service:
Full life
Manual:
English version
Guarantee:
1 year
Supply Ability
Supply Ability:
30 Set/Sets per Month
Packaging & Delivery
Packaging Details
Fumigation wooden cases, which are well sealed and strong enough for long term trip, and suitable for multi-times loading & unloading by forklift.
Port
Shanghai
Lead Time :
20-45 days after deposit

Factory Sachet filling machine gari packing machine



Contact Information

Email : jincpack06 at jincpack.com

Wechat : 13410506971

WhatsApp : +0086 15079278912

Skype : 15079278912

QQ : 415005440



Samples



Certificate

1

Features

1.A wide range of packaging, Suit for packing various powder of different state, nature.Suit for different types bags.

2.Easy operate, adopt PLC control, man-machine operate system, intuitive and convenient operation.

3.It takes about 10 minutes to change the filling material, convenient and quick.

4.High degree of automation. Unmanned in the whole process of the weighing and packaging. Automatic

alarm if any machine failures.

5.Perfect prevention system, intelligent detection whether the bag is open, whether open completes. Don’t

feeding, sealing when the bag is closed, don’t waste the bags and filling materials. Saving the cost.

6.The packaging parts of the machine are made of stainless steel to ensure the hygiene and safety of the

filling material, up to the GMP standard.

7.Use imported plastic bearings on the important components, without refueling, to reduce the pollution of

filling materials;



Technical Parameters

 Name

Pickles automatic weighing packaging production line

 Model

 JC-300

 Material

 304 Stainless steel

 Pneumatic Components

 SMC,AIRTAC

 Vacuum Components

 Vacuum generator(SMC)

 Drive mode

 Frequency conversion motor drive

Operate interface

 Touch screen

 Suitable packing material

 Mustard, pickled mustard, mushroom, dried radish, ginger and all kinds of pickles, jellyfish, fish sauce etc.

 Bag type

 Stand-up bag,Zipper bag,Four side seal bag,Three side seal bag,Reticule etc.

 Bag material

 PA/PE,PET/PE,Aluminum film and other heat sealing film

 Bag specification

Width:70~200mm

 Length : 100~300mm(Coding requirement length: Min140mm)

 Work flow

1.Bag supply 2.Date print 3.Open the bag 4.Feeding 5.Heat seal 6.Output

 Filling range

 5~500g

 Packing speed

 40~60bags/min

 Packing accuracy

 The tolerance is ≤±0.5-2g

 Weight

 1000kg

 Dimension(L*W*H)

 1555mm*1405mm*2265mm

 Power

 3kw

 Driver power supply

 380V , 50HZ

 Control power supply

 DC24V

 Compressed air consumption

 ≥0.45m3/m(Compressed air is provided by the user)

 Optional equipment

Single bucket elevator,Filling machine,Pickled vegetables weighing machine

Main Equipment

.jpg32QQ20170816095212

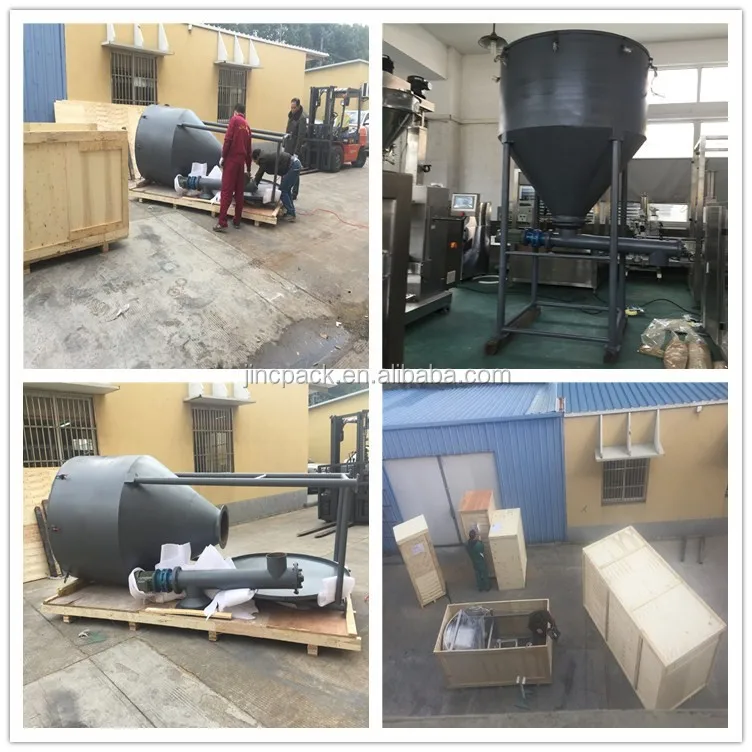

Packing & Shipping

 _

 initpintu_ (2)

Commissioning & After-sales Service

We make accurate factory layout design according to customer’s factory size; if the customer needed, we could make workshop design with electric power, water supply, gas power, material storage, final storages, workers’ restroom, etc.

If customer need, we will send engineer for the commissioning service. 1-2 of our engineer will

go to your factory to install and adjust the processing line to realize normal production at shortest time.
Our engineers have responsibility to train and teach the workers how to operate, clean, maintain the repair all the machine, until the worker could well operate the production line.

It normally costs 10 days for the commissioning service, and we supply 1 year guarantee from the date of completion of commissioning service.
The engineer’s round-trip flight tickets, accommodation and daily salary USD100 are on client’s account.
