Machine packing condiment powder rotary pepper packaging machine

FOB Reference Price:Get Latest Price
US $22,000-30,000 / Sets | 1 Set/Sets (Min. Order)
Model Number:
JC-GS12
Report Suspicious Activity
Overview
Quick Details
Type:
Other, Other
Condition:
New
Application:
Chemical, Food, Medical
Packaging Type:
Cans, Bottles
Packaging Material:
Metal, Glass
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
220V/380V
Power:
2KW
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
JC
Weight:
500Kg
Dimension(L*W*H):
1750*2700*2300mm
Certification:
CE ISO
After-sales Service Provided:
Engineers available to service machinery overseas
Name:
Machine packing condiment powder rotary pepper packaging machine
After-sales Service:
Full life
Material:
Stainless Steel 304
Guarantee:
1 yea
Manual:
English version
Layout:
AutoCAD format according to client's workshop
Spare Parts:
1 set
Training:
Provide by technician in commissioning service
Supply Ability
Supply Ability:
30 Set/Sets per Month
Packaging & Delivery
Packaging Details
Fumigation wooden cases, which are well sealed and strong enough for long term trip, and suitable for multi-times loading & unloading by forklift.
Port
shanghai
Video Description
Product Description

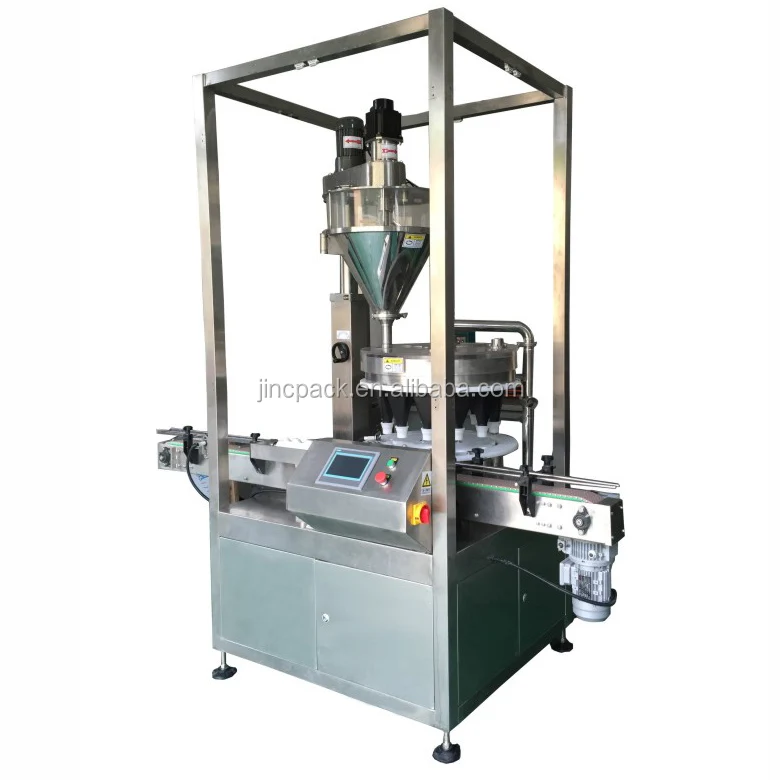

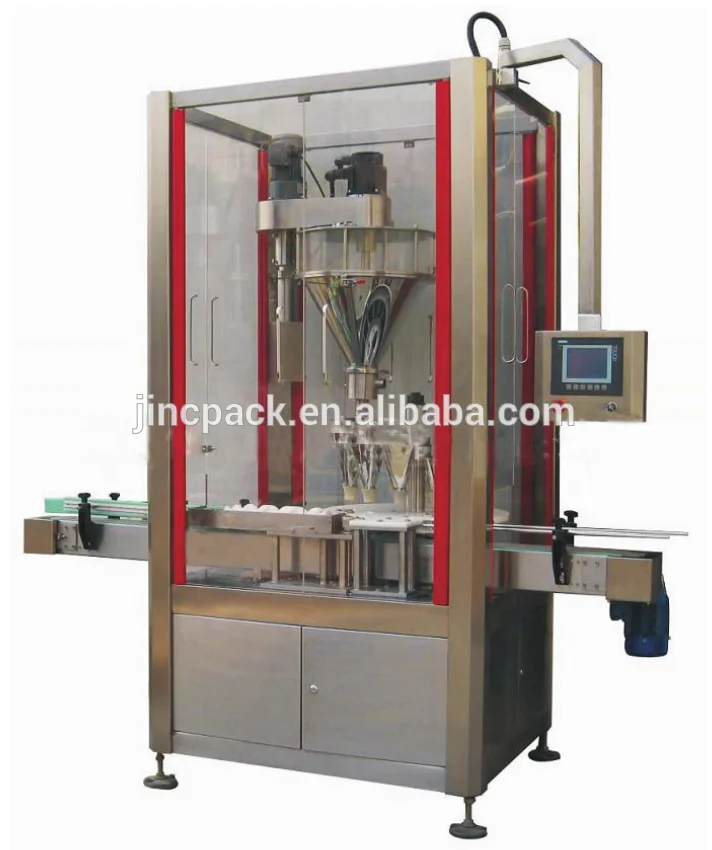

Automatic High Speed  Powder Filling Machine for Cam Tin

JC-GS12 Automatic high speed powder filling machine is our new design, which according to the national GMP standard. Multi-sectional rotating type filling machine, widely used for all kinds of bottles/cans of different shape. It fits for packing powder material with good fluidity, such as spices powder, milk powder, rice flour, sugar powder, coffee powder, etc.

Model
JC-GS12
Measuring method
Screw rotation quantitative type
Control system
Control system self-contained
Container size
cylindrical vessel  φ50mm H 50-300mm
Filling weight
10-500g (Change screw components)
Packing accuracy
≤±1%
Packing speed
40-120 cans/min
Power supply
Three-phase 380V/50-60HZ  (Can be customized)
Overall power
2.0Kw
Overall weight
400kg

Main Features

1) English touch screen, man-machine interface, PLC control system, servo motor.

2) The screw machine does the measurement. And filling by the multi position hopper.

3) Open type hopper, personalized customization, SUS304 mental frame structure, which is scientific, clear and convenient.

4) Automatic can feeding system which will not filling when lack of the bottle or cans.

5) According to the size of the bottle/ cans, relevant components can be adjustable.

6) The inlet closely aligned the hopper mouth, avoid the leakage of material when work.

7) With the function of vibration, dust collection.

Our Service

Pre-Sales Service

After-Sales Service

Our Company

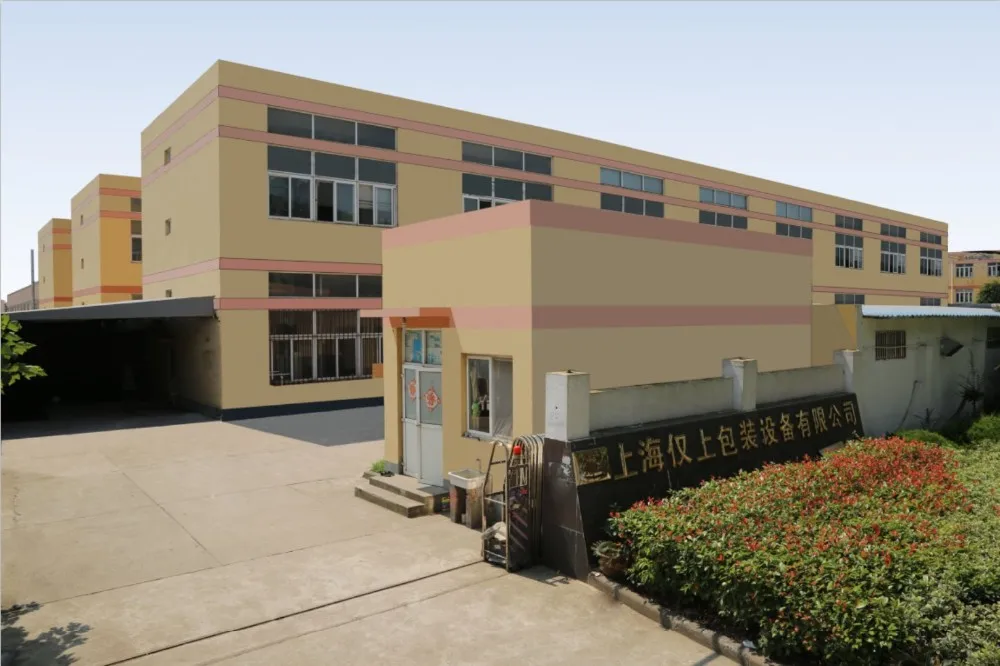

Factory

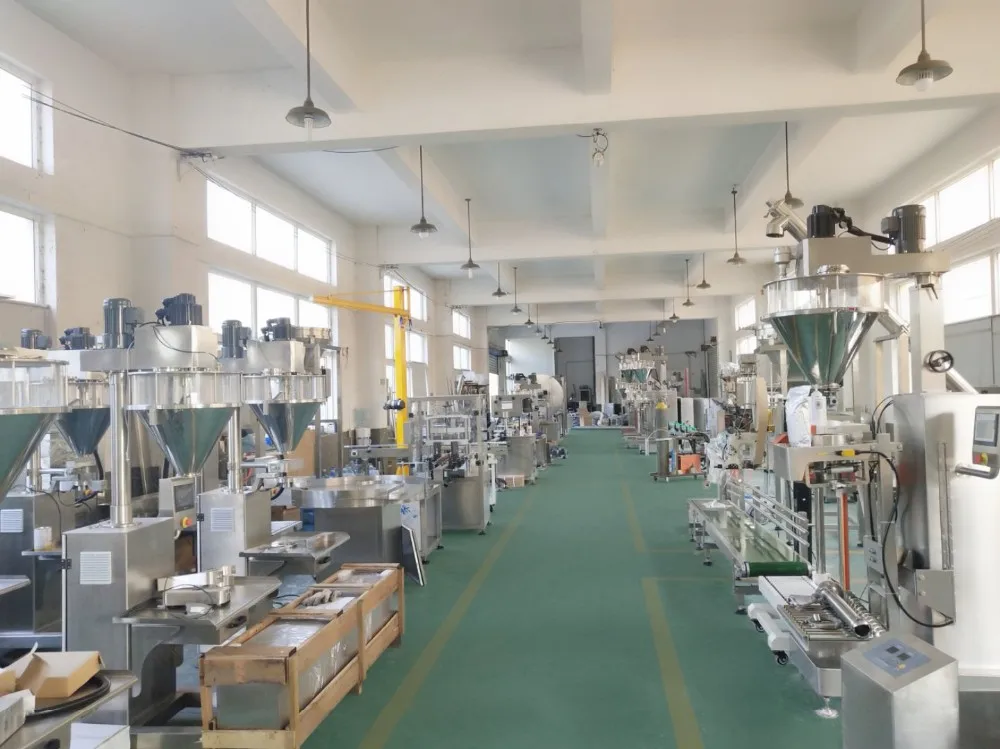

Workshop

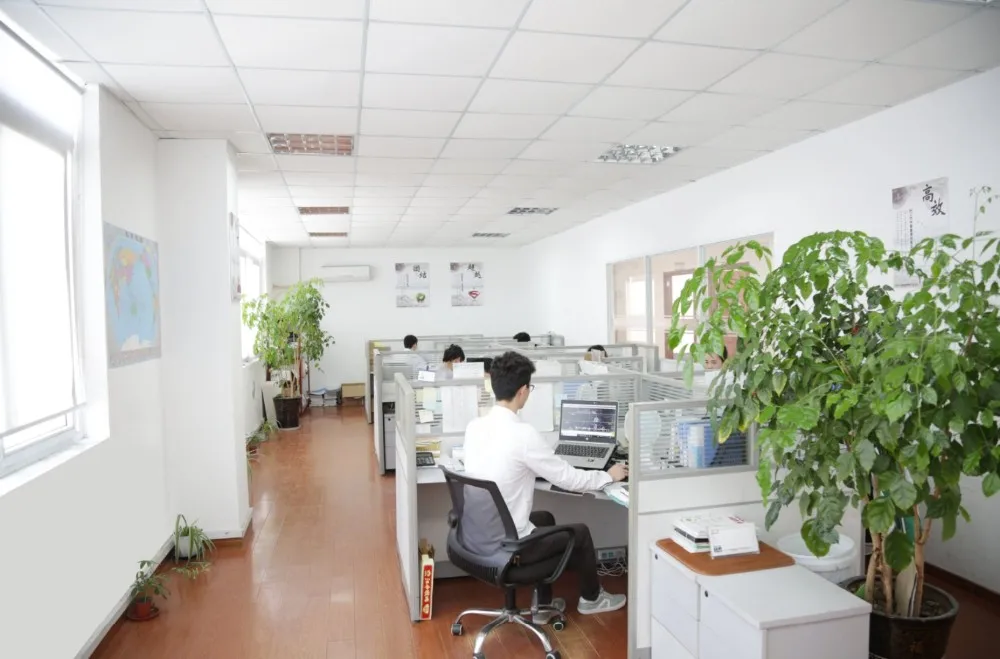

Office

Warehouse

Certifications
Packing & Delivery

The normal package is wooden box(Size: L*W*H). If export to foreign countries,the wooden box will be fumigated. If container is too tighter,we will use PE film for packing or pack it according to customers special request.

FAQ

Q: Are you trading company or manufacturer ?
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 30-45 days if the goods are not in stock, it is according to quantity.

Q: How to get an accurate quotation ?
A: Please provide us the detail of the workplace such as drawing and dimensions.


Q: What is your terms of payment ?
A:Payment terms: 30% down payment against order by T/T, the balance of 70% to be paid on delivery. Minimum order quantity: 1 set, FOB Shanghai
Delivery time: about 30-45 working days after receipt of formal order and 30% deposit.
Warranty: 12 months following delivery. We offer online service 24 hours all day long, Skype,
Email etc. You can contact us any time, if urgently, please call us.

Q: What's policy for guarantee and broken parts ?
A: As for machine products, our company provides 12 months for all mechanical parts with the exception of electrical and electronic parts and those subjects to normal wear and tear. The guarantee is intended limited to the replacement of the broken part after checking the construction fault. The inspection of the causes of the trouble or the breakdown of the parts is exclusively up to the manufacturing company. All in all, our company can offer you assured products.
