Milk packing machine powder filler china filling machine

FOB Reference Price:Get Latest Price
US $26,800-35,000 / Sets | 1 Set/Sets (Min. Order)
Power:
3.5KW
Model Number:
JC-2B3
Report Suspicious Activity
Overview
Quick Details
Type:
Filling Machine
Condition:
New
Application:
Chemical, Food, Medical
Packaging Type:
Cans, Bottles
Packaging Material:
Metal, Glass
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
220V
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
JC
Dimension(L*W*H):
3330*1200*2930mm
Weight:
800Kg
Certification:
CE ISO
After-sales Service Provided:
Field installation, commissioning and training, Engineers available to service machinery overseas
Warranty:
1 Year
Name:
Milk packing machine powder filler china filling machine
After-sales Service:
Full life
Material:
Stainless Steel 304
Layout:
AutoCAD format according to client's workshop
Guarantee:
1 year
Manual:
English version
Training:
Provide by technician in commissioning service
Spare Parts:
1 set
Supply Ability
Supply Ability:
30 Set/Sets per Month
Packaging & Delivery
Packaging Details
Fumigation wooden cases, which are well sealed and strong enough for long term trip, and suitable for multi-times loading & unloading by forklift.
Port
shanghai
Video Description
Product Description

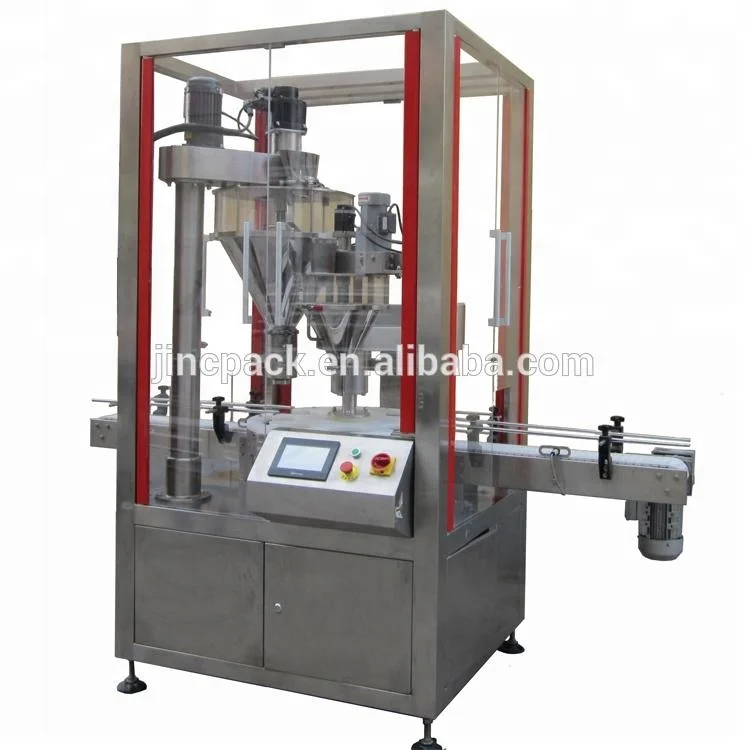

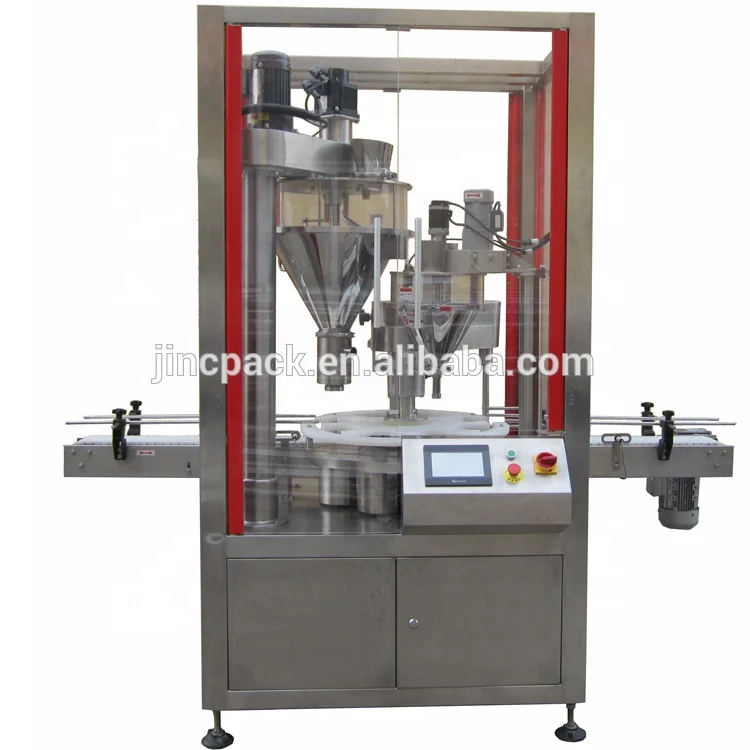

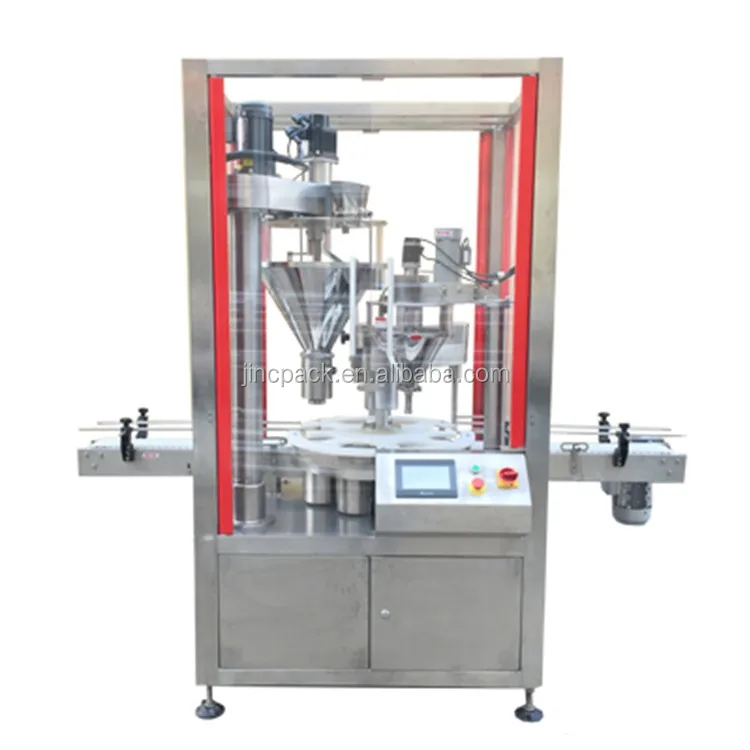

High Precision Automatic Powder Filling Machine for Can Tin

The equipment is my company according to market development needs, combined with the practice on the basis of the development and design, in line with national GMP standard the machine fusion concept of European packaging science and technology, the largest technology, design more reasonable and more concise and more solid automatically feed that tank filling, etc, suitable for filling powder, such as solid drink, milk powder, rice flour, etc.

Model
JC-2B3
Measuring method
Spiral rotation filling, replenish after weighing
Packing container size
φ50-180mm H:50-350mm
Packing weight
10-5000g (change the screw components)
Packing accuracy
≤100g               ≤±1.5g
≤100-1000g     ≤±2.5g
> 1000g              ≤±4g
Packing speed
25-55 cans/min  (Depending on material characteristics)
Power supply
Three-phase 380V    50-60HZ
Machine power
3.5KW
Air pressure
6-8kg/cm²
Gas consumption
0.2m³/min
Total weight
800kg
Dimension (L*W*H)
3330*1200*2930mm
Hopper volume
First filling hopper 50L, replenish hopper 10L

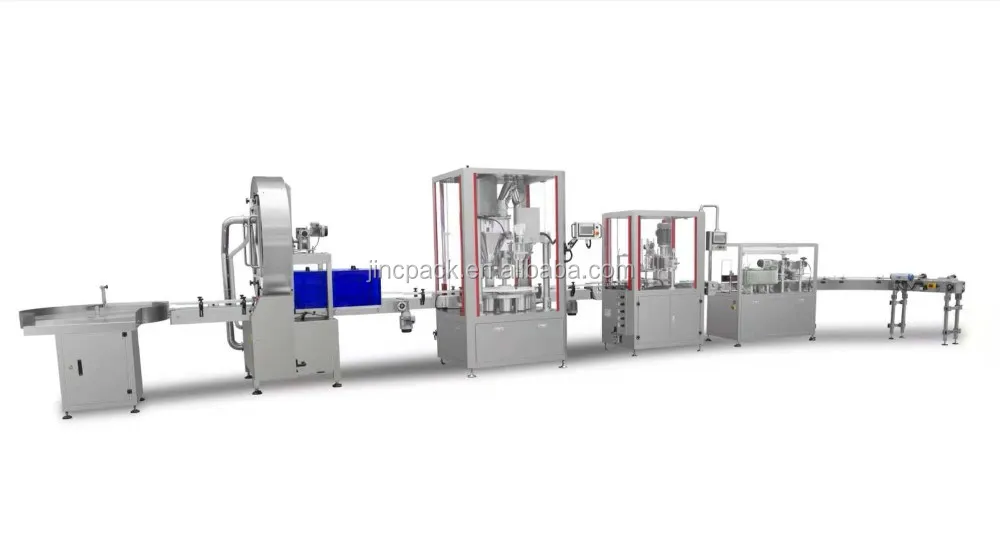

Automatic Milk Powder Canning Production Line


Main Features

1) Modular program design, PLC control system, man-machine interface, works at a glance.

2) Use cans or bottles of container packing, configure automatic feed tank system.

3) Applicator will check, and don't pass every can/bottle that filling weight is unqualified.

4) The whole machine structure is simple layout is reasonable, change the packing varieties is fast, convenient in cleaning up.

5) Uses the proportion feedback tracking and high speed response clutch brake drive screw.

6) Mechanical stability and durability, low failure rate

Our Company

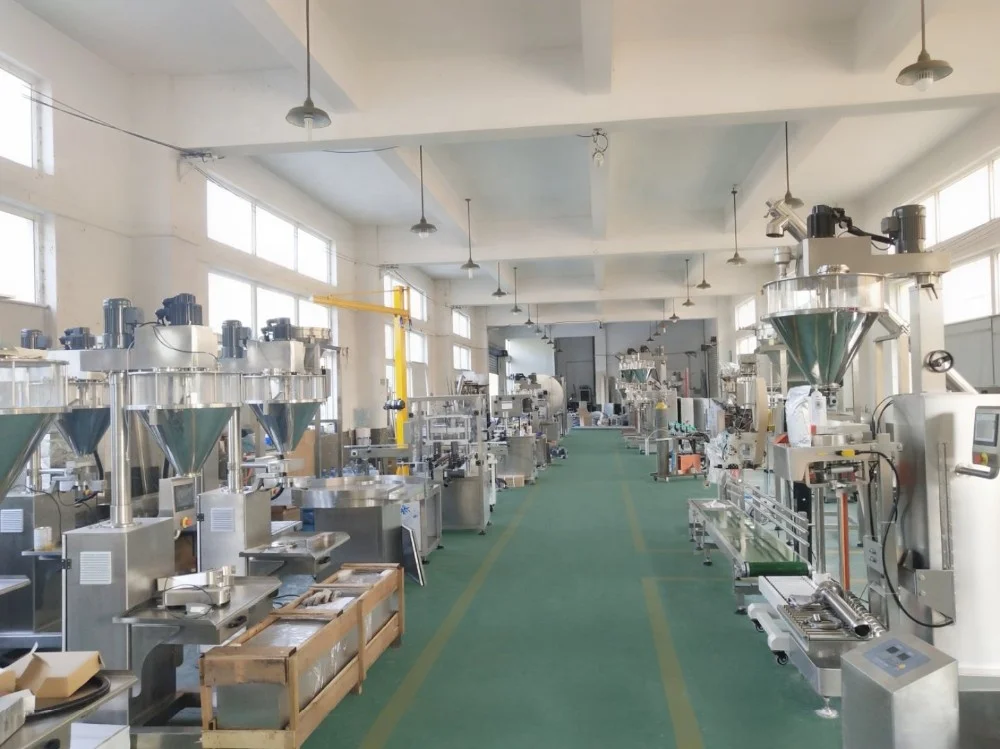

Factory

Workshop

Office

Warehouse
Our Service

Pre-Sales Service


After-Sales Service


Certifications
Packing & Delivery

The normal package is wooden box(Size: L*W*H). If export to foreign countries,the wooden box will be fumigated. If container is too tighter,we will use PE film for packing or pack it according to customers special request.

FAQ

Q: Are you trading company or manufacturer?
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 30-45 days if the goods are not in stock, it is according to quantity.

Q: How to get an accurate quotation?
A: Please provide us the detail of the workplace such as drawing and dimensions.

Q: What is your terms of payment?
A:Payment terms: 30% down payment against order by T/T, the balance of 70% to be paid on delivery. Minimum order quantity: 1 set, FOB Shanghai
Delivery time: about 30-45 working days after receipt of formal order and 30% deposit.
Warranty: 12 months following delivery. We offer online service 24 hours all day long, Skype,
Email etc. You can contact us any time, if urgently, please call us.


Q: What's policy for guarantee and broken parts?
A: As for machine products, our company provides 12 months for all mechanical parts with the exception of electrical and electronic parts and those subjects to normal wear and tear. The guarantee is intended limited to the replacement of the broken part after checking the construction fault. The inspection of the causes of the trouble or the breakdown of the parts is exclusively up to the manufacturing company. All in all, our company can offer you assured products.
